UL 10B 20 MINSMOKEOPENINGS IN SMOKE PARTITIONS
SD60® Smoke Curtain®
A deployable smoke curtain that drops from a concealed headbox to seal openings in smoke partitions.
— APPLICATION

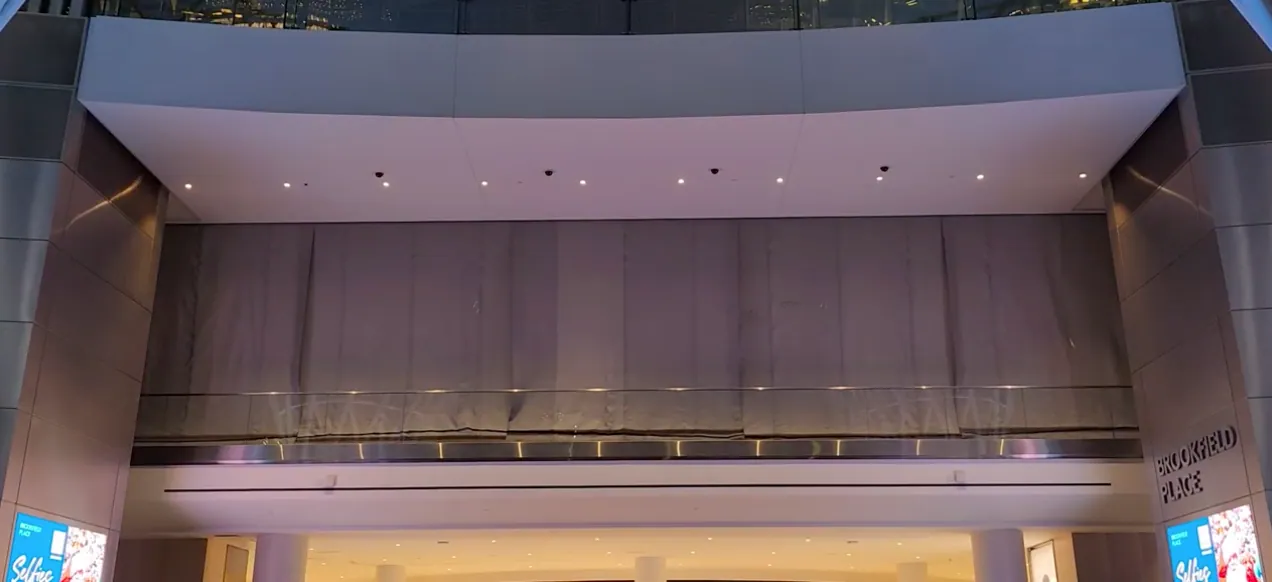

Multi-level atrium smoke control and containment, and smoke zone separation. Deploys to the smoke layer interface — 6 ft above finished floor — or to the floor, closing openings in smoke partitions where code requires containment without a fire rating. Hidden in the ceiling until deployed.
— KEY SPECIFICATIONS
| Rating | Smoke containment — not hose stream tested |
|---|---|
| Tested to | UL 10B 20 min (no hose) · ASTM E84 · ASTM E136 |
| Max length | Up to 984 ft |
| Max drop height | Up to 45 ft |
| Deployment | Gravity fail-safe · 6–24 in/sec per NFPA 80 Ch. 21 |
| Fabric | Glass textile, polyurethane coating — gray |
| Headbox | 18-ga steel · 7"×7" or 9"×9" single roller · 11"×7" / 7"×11" multi-roller |
| Power | 120V dedicated 20A circuit · panel draws 7 amps |
| Battery backup | 2 × 12V in UL 864 listed control panel |
| Control | Up to 4 motors per panel · up to 9 panels in series |
— COMPLIANCE
UL 10B 20 Min (no hose)ASTM E136ASTM E84
— SYSTEM DETAILS
Rendered from the engineering model
— IN THE FIELD
See it in action
PRODUCT DEMO
SD60® Smoke Curtain® — UMASS University Crossings
— SPEC ASSISTANCE
Spec this product with an architect, not a sales rep.
Our A&E team details curtains into projects from concept design through construction drawings — at no cost. Call 888-917-8777 or write aeteam@ussmokeandfire.com.
