SD60GS® 1Hr Fire Protective Smoke Curtain with Egress
A 1-hour fire protective smoke curtain with built-in egress.
— APPLICATION
Openings in smoke barrier walls, openings in fire partition walls, elevator lobby interface, fire rating glass applications, and openings in corridors. Considered a "smoke barrier" in the IBC, the SD60GS® deploys to the floor in side guides (rails) recessed into the wall cavity or flush with the face of drywall. The headbox is bespoke, in two types — single roller or multi-roller — depending on the width of the opening. Egress options include emergency curtain-up buttons and two-stage descent.
— KEY SPECIFICATIONS
| Fire rating | 1 Hr — UL 10D (no hose stream test) — UL |
|---|---|
| Also tested | UL 10D 30 min — Intertek · UL 10B 20 min (no hose stream test requirement) — Intertek · ASTM E84 — Intertek · ASTM E136 — NGC |
| Max length | 146 ft |
| Max drop height | 45 ft |
| Headbox | 7"×7" (10 ft drop) or 9"×9" (20 ft drop) single roller · 11"×7" / 7"×11" multi |
| Side guides | 2" × 4" factory etch-primed steel · recessed 2–3 in or flush mount |
| Deployment | Gravity to floor · 6–24 in/sec per NFPA 80 Ch. 21 |
| Egress | Two-stage descent (dwell 6'8" AFF, 1 min) · EUB at 36–42 in AFF within 3 ft · optional pass-through slot |
| Power | 120V dedicated 20A circuit · panel draws 7 amps |
| Battery backup | 2 × 12V in UL 864 listed control panel |
| Control | Up to 4 motors per panel · up to 9 panels in series |
— COMPLIANCE
— SYSTEM DETAILS
Rendered from the engineering model
— IN THE FIELD
See it in action
PRODUCT DEMO

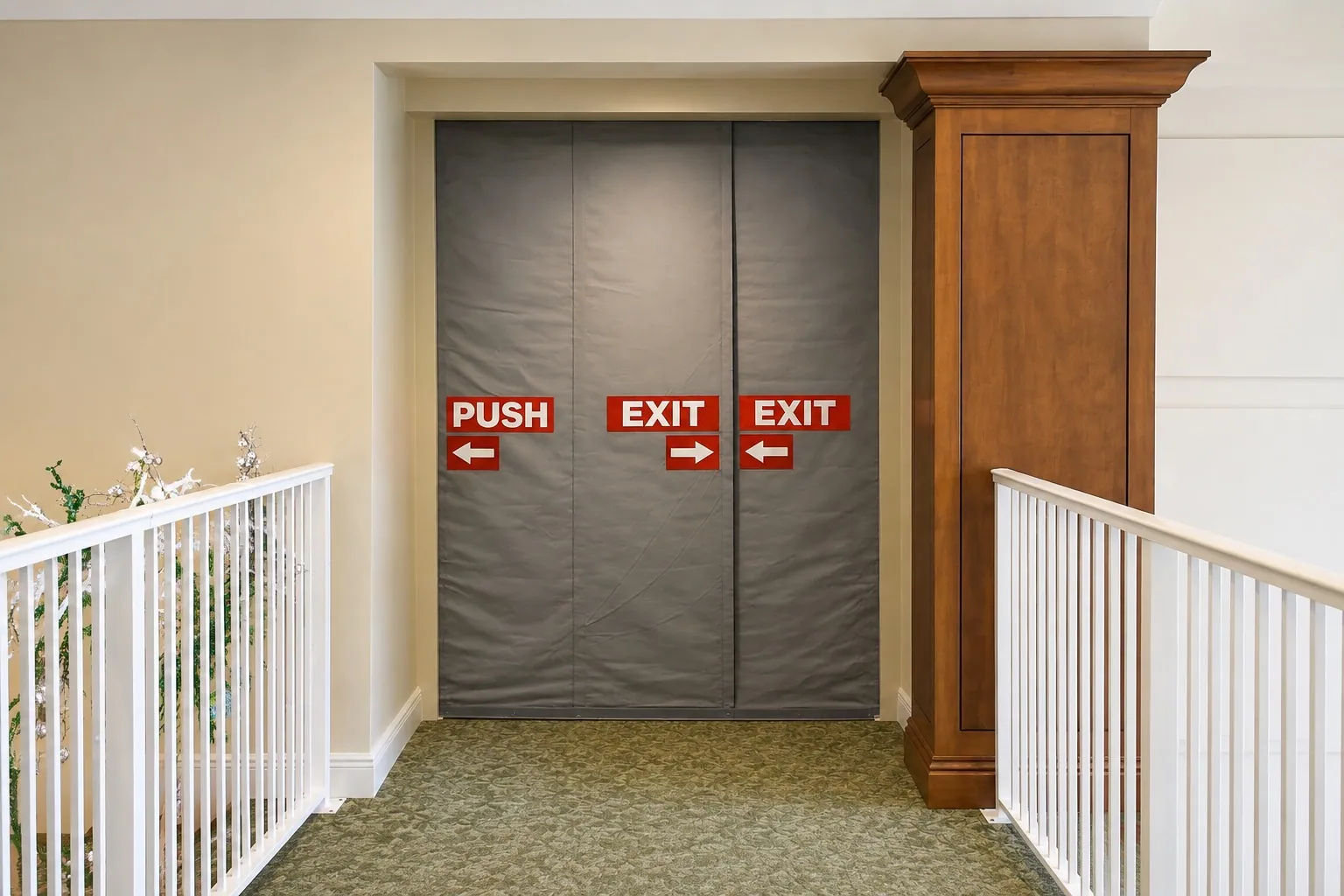

SD60GS® 1 Hr Fire Protective Smoke Curtain with Pass-Through Slot — Allegro Senior Living, Boynton Beach, FL
