SD60® Fixed Fabric Draft Curtain®

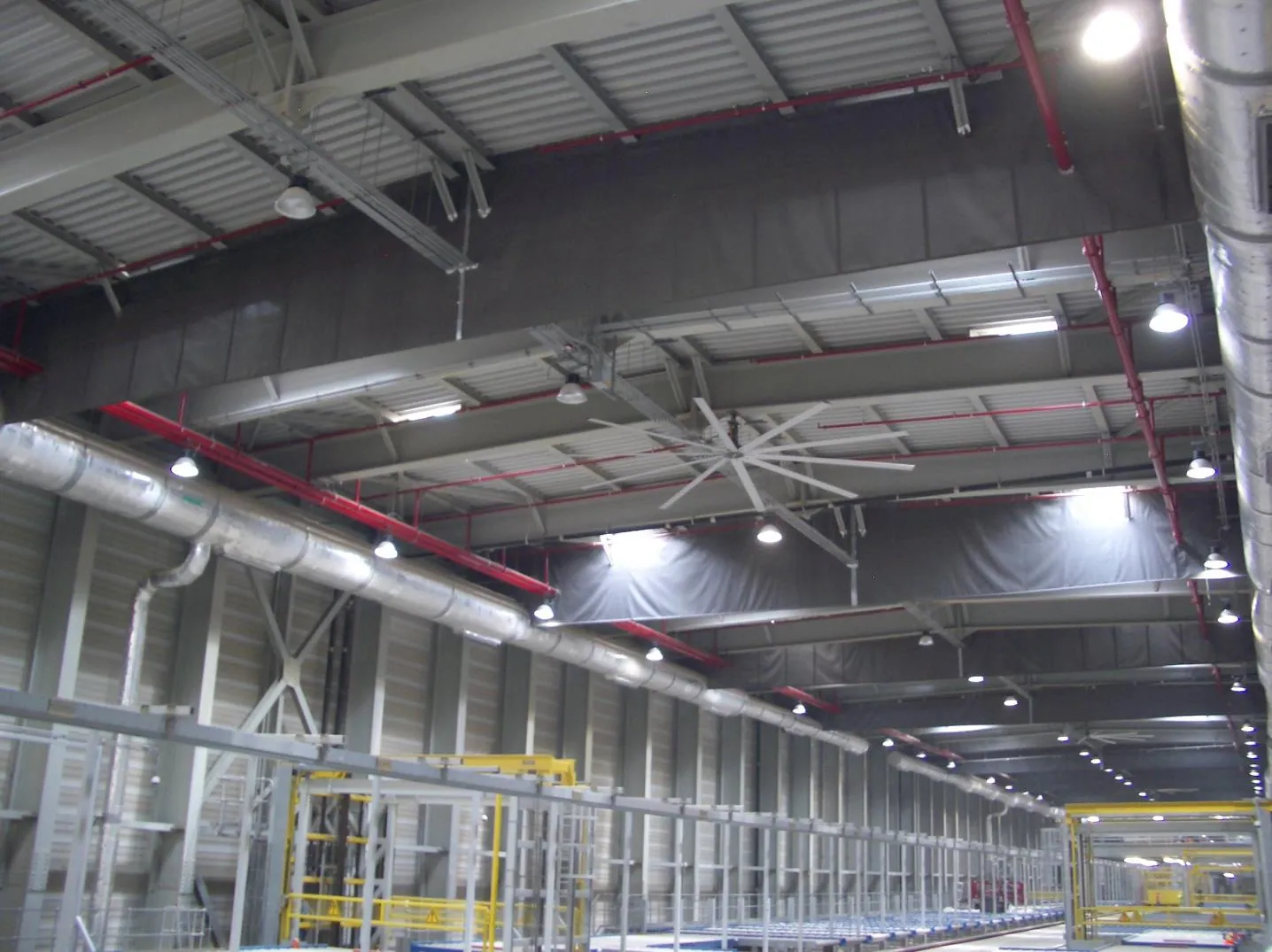

A permanently fixed fabric draft curtain for smoke zoning in aircraft hangars, warehouses, and attics.
— APPLICATION
Aircraft hangars (NFPA 409), warehouses, and attic spaces — anywhere a static curtain satisfies the smoke zoning design without a motor or control panel. Fabric fastens directly to the beam flange, beam clamps, roof decking, or a high-tensile cable at end walls; pipe penetrations get a keyhole cut and re-sewn shut with stainless steel fabric. Reduces sprinkler system requirements while meeting the strictest NFPA draft curtain thresholds in place.
— KEY SPECIFICATIONS
| Rating | Draft / smoke zoning — fixed, not hose stream tested |
|---|---|
| Tested to | UL 10B 20 min (no hose) — Guardian · UL 10B 2 Hr (no hose) — NGC · ASTM E84 — Intertek · ASTM E136 — NGC |
| Fabric | Woven glass fiber, fire-rated — gray · 10–20 ft segments, 2 in overlap |
| Bottom edge | 1 in sewn pocket with aircraft cable (typ. 1/2 in dia.), tied off both ends |
| Mounting | Metal screws every 12 in · beam flange, beam clamps, roof deck, or high-tensile cable at end walls |
| Pipe penetrations | Keyhole cut in fabric, re-sewn with stainless steel fabric to restore the enclosure |
| Scope of supply | USSF supplies fabric only — screws and aircraft cable by others |
| Moving parts | None — no motor, no control panel |
| Codes | NFPA 409 (aircraft hangars) · IBC hose stream tiers at 45/90/120/180 min — not required below UL 10B 20 min |
— COMPLIANCE
UL 10B 20 Min (no hose)ASTM E136ASTM E84
— IN THE FIELD

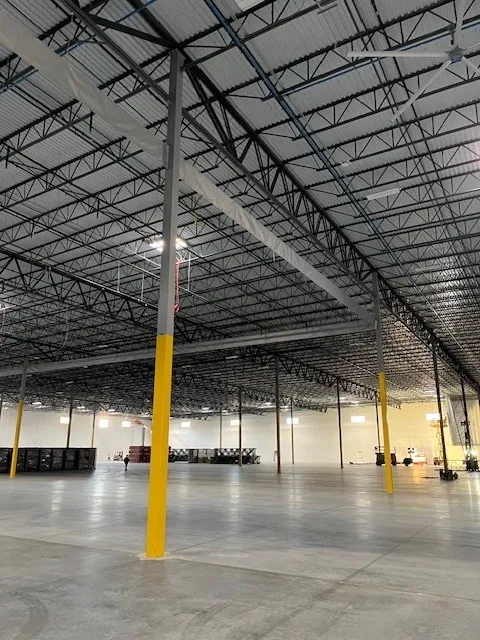

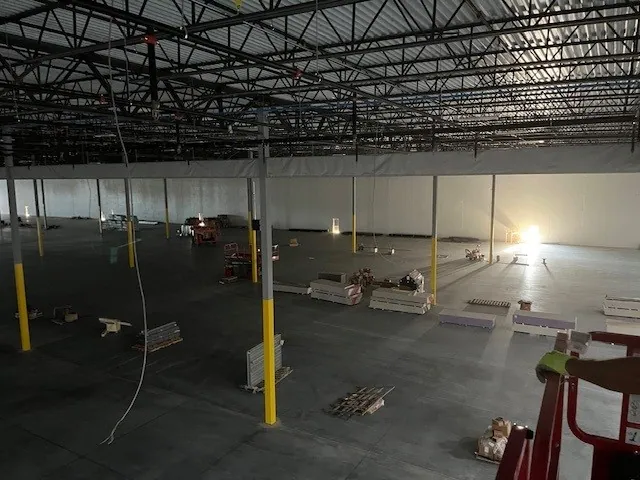

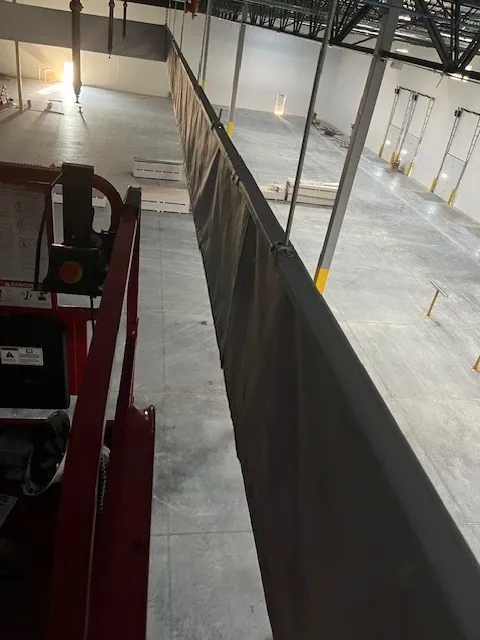

See it in action
