UL 10B3 HROPENINGS IN FIREWALLS, FIRE BARRIERS & FIRE PARTITIONS
Hose Stream 180®

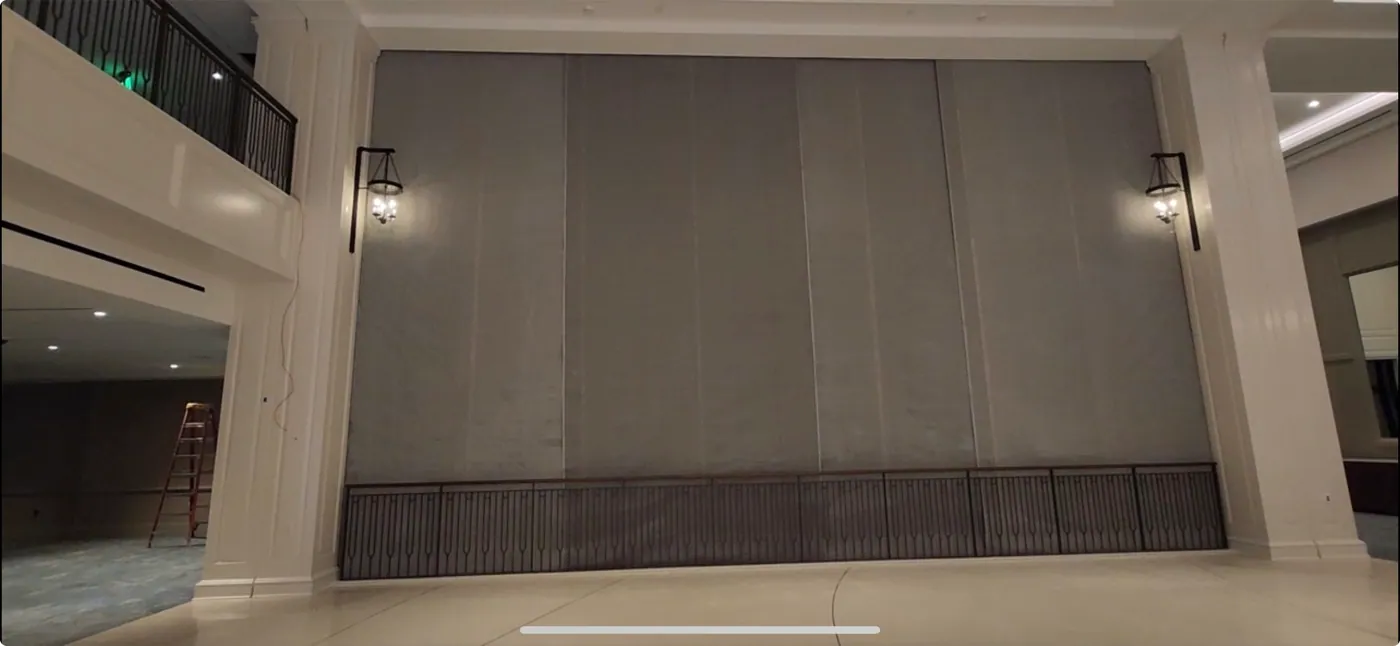

A Steel-Tex® fire shutter tested for 3 hours to UL 10B — including the hose stream test — for 3-hour fire walls and fire barrier walls.
— APPLICATION

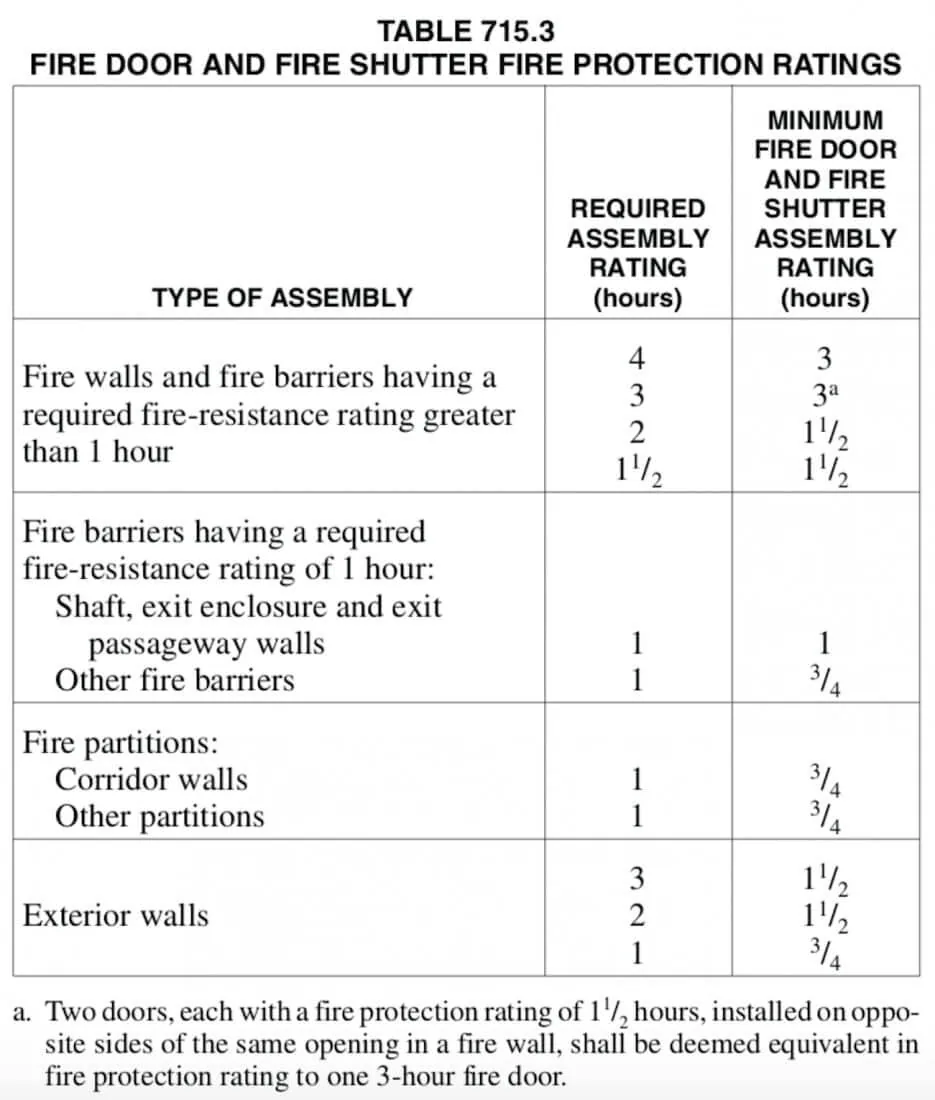

An opening protective that meets the requirement for a 3-hour fire protection rating — and can therefore be used in a 3-hour fire wall or fire barrier wall assembly, per IBC Table 715.3, Fire Door and Fire Shutter Fire Protection Ratings.
— KEY SPECIFICATIONS
| Fire rating | 3 Hr minimum to UL 10B — an opening protective for a 3-hr fire barrier enclosing wall (IBC Table 715.3) |
|---|---|
| Hose stream | ASTM E2226 — passed as part of fire endurance testing |
| Design | Multibarrel Steel-Tex® assembly · 24 in overlap · inverted-T bottom bar |
| Activation | Releases on signal from the fire alarm system (FAS) |
| Egress | Push-to-exit buttons · an occupant can step through the 24 in overlap to the opposing side |
| Options | Leading-edge safety sensor · BMS relay · beam sensor |
| Mounting | Threaded rods and unistruts · 120V to motor side of headbox |
| Codes | IBC Table 715.3 |
— COMPLIANCE
UL 10BASTM E2226
— SYSTEM DETAILS
Rendered from the engineering model
— SPEC ASSISTANCE
Spec this product with an architect, not a sales rep.
Our A&E team details curtains into projects from concept design through construction drawings — at no cost. Call 888-917-8777 or write aeteam@ussmokeandfire.com.
