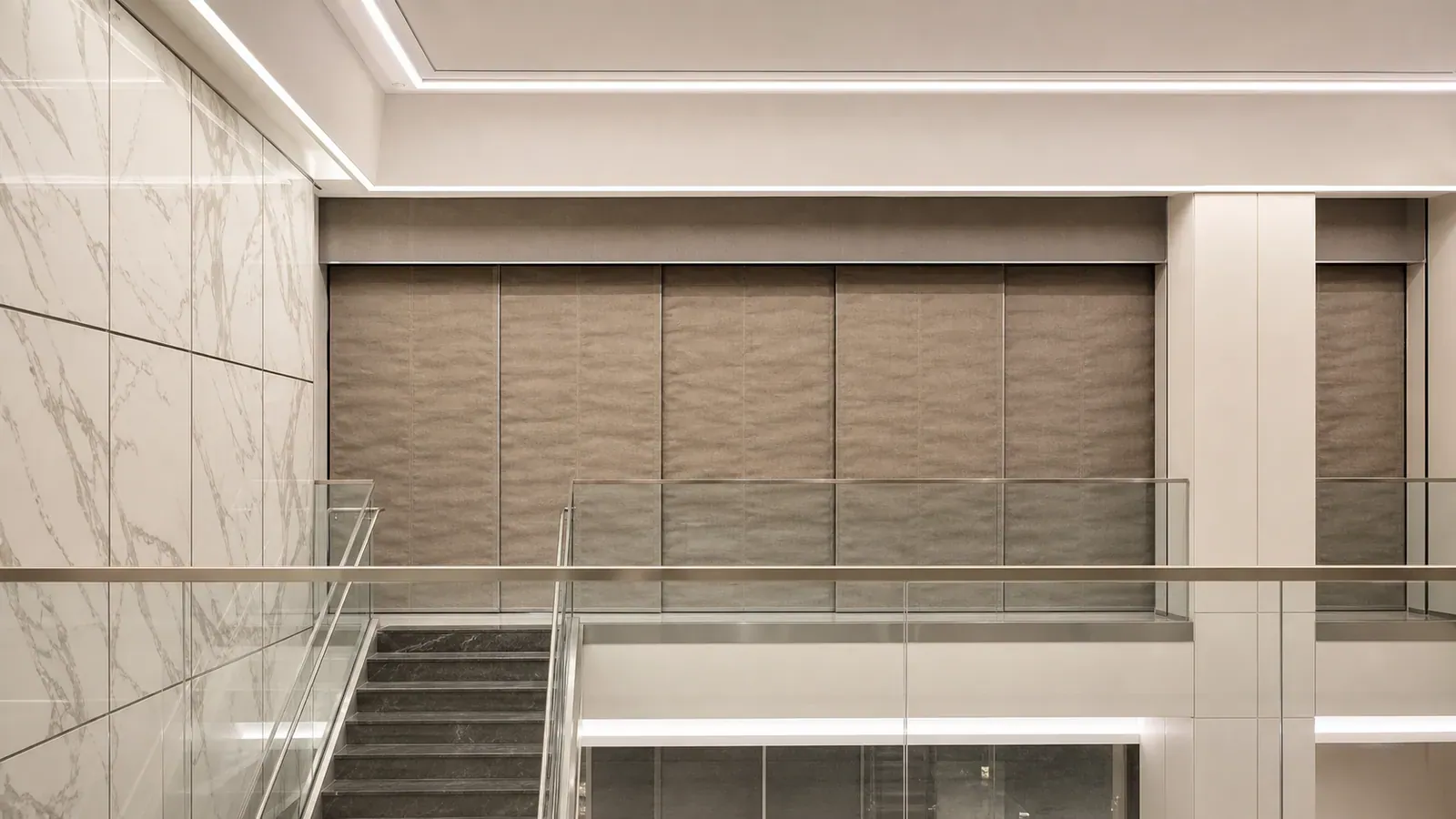

UL 10B2 HRMOVEABLE FIRE WALLS
Dual Hose Stream 120®
A dual-panel fire shutter for wide openings and moveable fire wall applications.
— APPLICATION
When 25% of the opening in a firewall is exceeded, an ASTM E119 (UL 263) listed and labeled assembly is required in compliance with IBC Section 707.6 Exception 3. The Dual Curtain is tested and evaluated to the ASTM E119 test standard with hose stream test (ASTM E2226), in accordance with IBC 903.3.1.1 — 2-hour tested to ASTM E119 with hose stream test (ASTM E2226). Maximum span up to 984 ft. and drop height of 39 ft.
— KEY SPECIFICATIONS
| Fire rating | 2 Hr — tested to ASTM E119 (UL 263) with ASTM E2226 hose stream |
|---|---|
| Also tested | UL 10B · UL 1784 |
| Max span | Up to 984 ft |
| Max drop height | 39 ft |
| Deployment | X, Y, and Z-axis · moveable fire wall applications |
| Egress | Sliding Wall Retract (SWR) option |
| Applications | Openings exceeding 25% of firewall area |
| Codes | IBC 707.6 Exception 3 · IBC 903.1.1 · IBC 903.3.1.1 |
| Certification | Intertek File 5016929 |
— COMPLIANCE
UL 263UL 10BASTM E2226UL 1784IBC 903.1.1
— SYSTEM DETAILS
Rendered from the engineering model

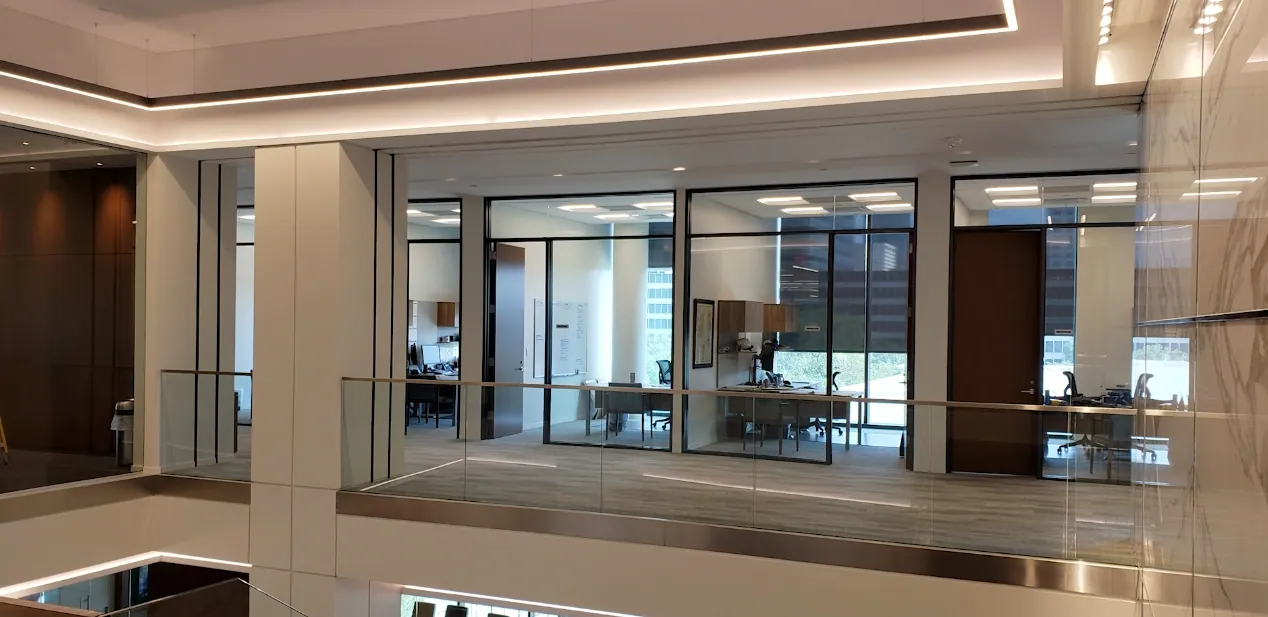

— IN THE FIELD
See it in action
PRODUCT DEMO
Dual Hose Stream 120 — Product Demo
— SPEC ASSISTANCE
Spec this product with an architect, not a sales rep.
Our A&E team details curtains into projects from concept design through construction drawings — at no cost. Call 888-917-8777 or write aeteam@ussmokeandfire.com.
