UL 10B2 HROPENINGS IN FLOORS AND BETWEEN FIRE WALLS
Hose Stream 120® Horizontal
The Hose Stream 120 installed horizontally — X and Z-axis deployment for openings in floors and between fire walls.
— APPLICATION
Openings in floors and between fire walls where hose-stream-tested protection must deploy horizontally. Same Steel-Tex® assembly as the Hose Stream 120, oriented for X and Z-axis geometry.
— KEY SPECIFICATIONS
| Fire rating | 120 min to UL 10B with ASTM E2226 hose stream — for up to a 2-hr floor |
|---|---|
| Deployment | Horizontal — X and Z-axis deploy and retract |
| Fabric | Steel-Tex® — gray |
| Egress | Push-to-exit buttons · SR sliding retract egress variant available |
| Mounting | Threaded rods and unistruts · 120V to motor side of headbox |
| Activation | Fire alarm signal · leading-edge sensor, BMS relay, beam sensor options |
| Codes | IBC Table 716 · IBC 707.6 · IBC 903.1.1 |
— COMPLIANCE
UL 10BASTM E2226
— SYSTEM DETAILS
Rendered from the engineering model

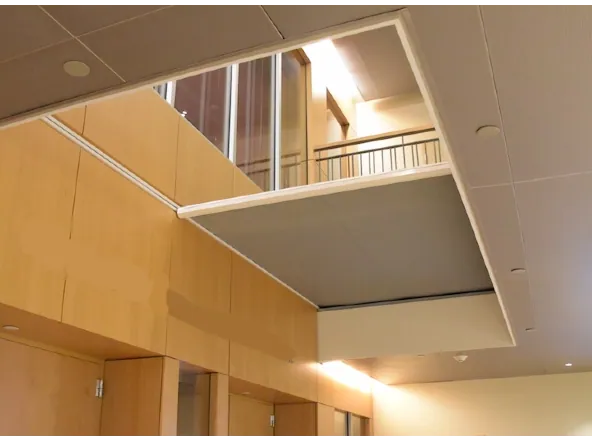

— IN THE FIELD
See it in action
— SPEC ASSISTANCE
Spec this product with an architect, not a sales rep.
Our A&E team details curtains into projects from concept design through construction drawings — at no cost. Call 888-917-8777 or write aeteam@ussmokeandfire.com.
