UL 10B1½ HROPENINGS IN FIREWALLS, FIRE BARRIERS & FIRE PARTITIONS
Hose Stream 120® First Responder
The Hose Stream 120 with First Responder access built in.
— APPLICATION
Rated openings where fire crews need to pass through the deployed barrier. Same 1½-hour rating, plus emergency access.
— KEY SPECIFICATIONS

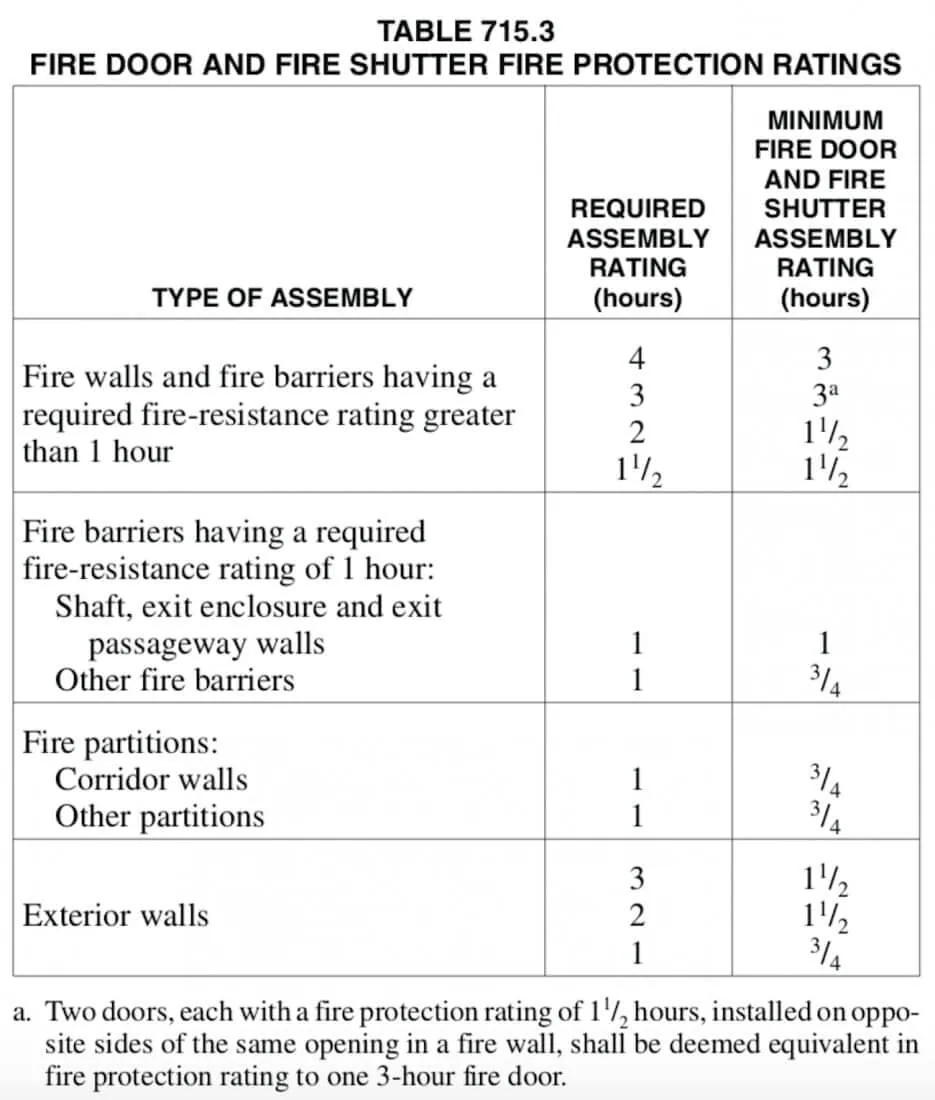

| Fire rating | 90 min minimum — suitable for a 2-hr fire-rated wall or fire barrier, per IBC Table 715.3 |
|---|---|
| Tested to | UL 10B with ASTM E2226 hose stream · UL 1784 |
| Design | Multibarrel Steel-Tex® assembly · 24 in overlap · inverted-T bottom bar |
| Deployment | Y-axis deploy and retract |

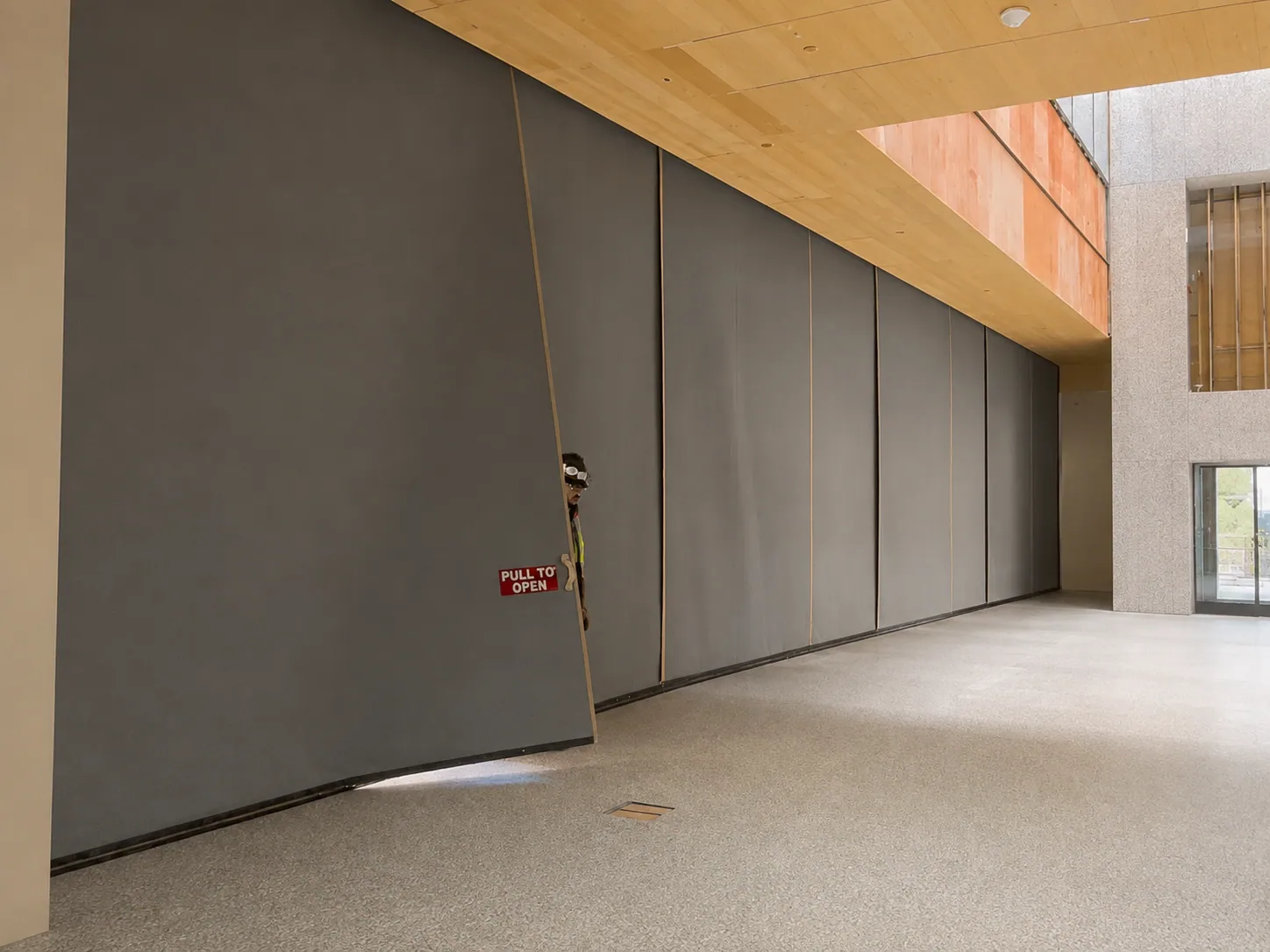

| First Responder | Push-to-exit buttons · step through the overlap to the opposing side |
| Options | Leading-edge safety sensor · BMS relay · beam sensor |
| Mounting | Threaded rods and unistruts · 120V to motor side of headbox |
| Codes | IBC Table 716 · IBC 707.6 Exception 3 · IBC 903.1.1 |
— COMPLIANCE
UL 10BUL 1784ASTM E2226
— SYSTEM DETAILS
Rendered from the engineering model
— IN THE FIELD
See it in action
PRODUCT DEMO
Hose Stream 120® First Responder — Steel-Tex® Fire Shutter
— SPEC ASSISTANCE
Spec this product with an architect, not a sales rep.
Our A&E team details curtains into projects from concept design through construction drawings — at no cost. Call 888-917-8777 or write aeteam@ussmokeandfire.com.
