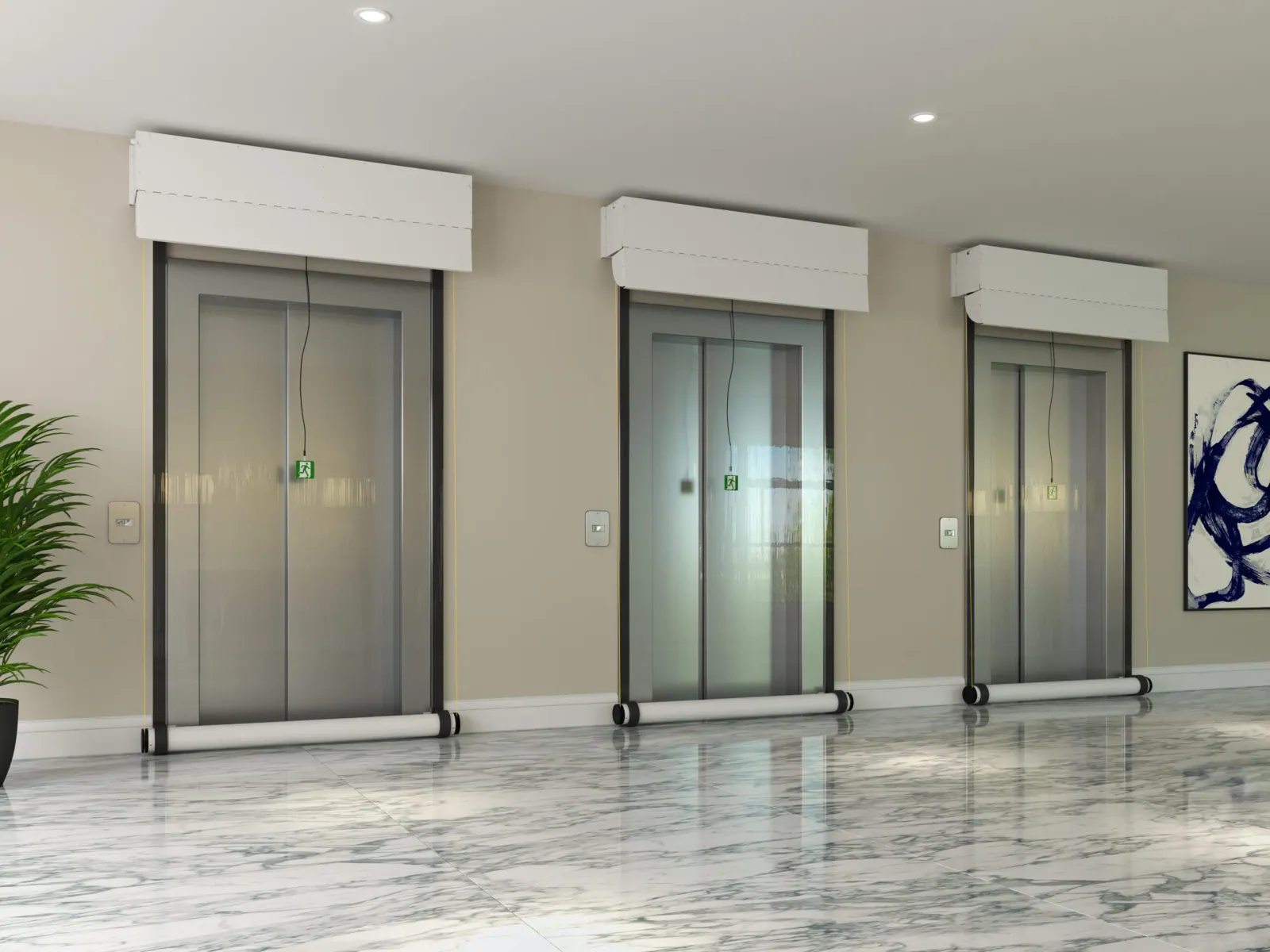

ESC Magnetic Seal

— APPLICATION

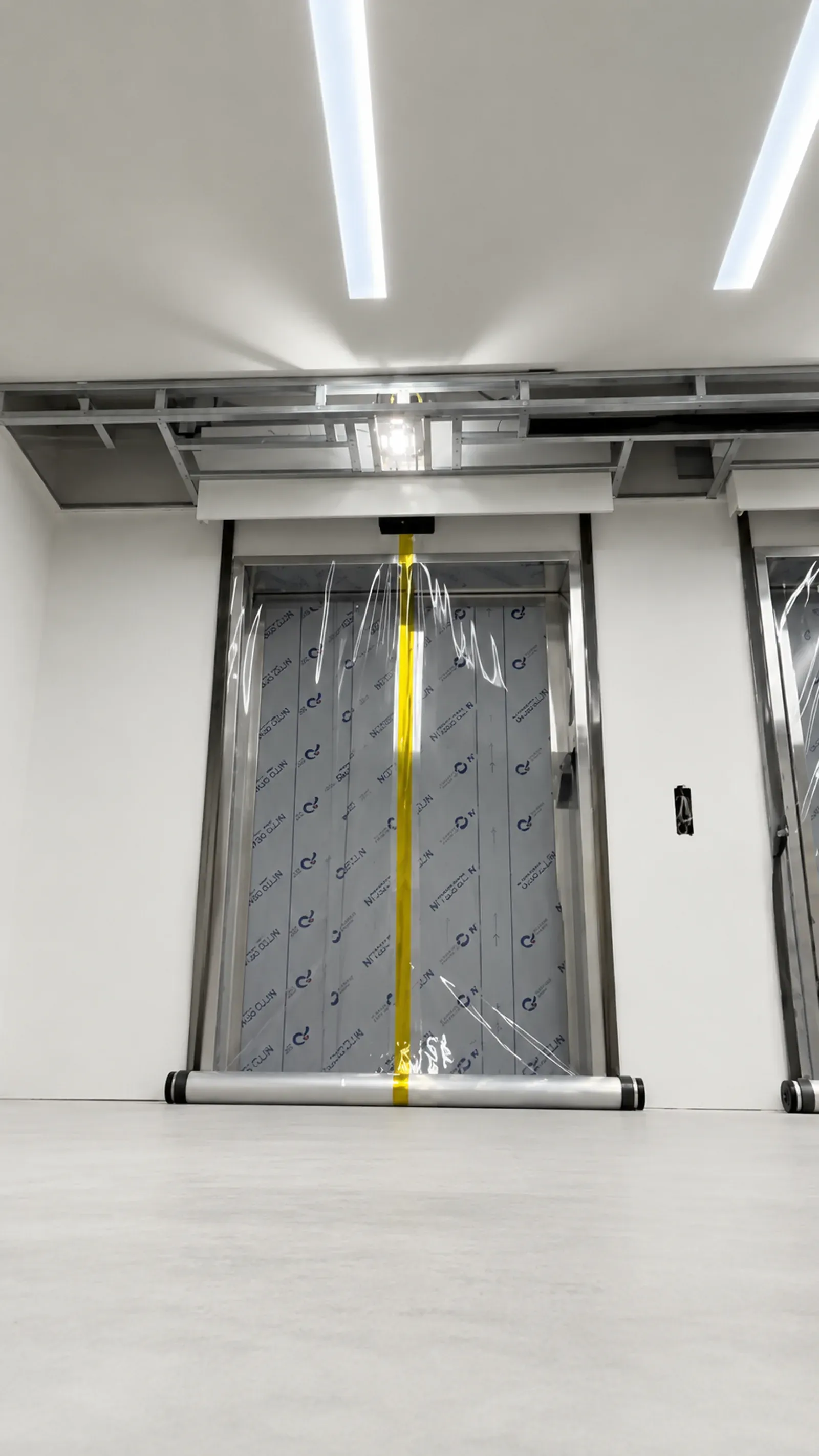

Elevator hoistway smoke containment. A transparent curtain unrolls from a headbox above the elevator opening, down the elevator frame or auxiliary rails, sealing the opening within 10 seconds of smoke detection, fire-protection alarm, or loss of power. A magnetic edge seals to the ferritic frame or rail — fewer moving parts than a side-guide system. Occupants inside a deployed elevator raise the curtain with a two-sided membrane switch per IBC 3008.2; it redeploys if smoke is still present. On loss of power, less than 15 lb (66.7 N) at the curtain boundary clears the flexible strips from the frame for egress.

— KEY SPECIFICATIONS

Rating	Smoke containment (elevator hoistway)
Tested to	UL 1784 (no artificial bottom seal) · ICC AC 77 · ICC ESR 4488
Curtain	Transparent polymeric, 0.004 in (0.1 mm) nominal thickness
Seal	Magnetic — ferritic elevator frames or auxiliary rails
Opening sizes	42 in to 100 in clear
Air leakage	Max 3.0 cfm/sq ft at 0.10 in. water (24.9 Pa), ambient and elevated temperatures
Activation	Smoke detector, fire-protection alarm, or power loss · deploys within 10 sec · retries obstruction 3x before holding
Egress (powered)	Two-sided membrane switch raises curtain per IBC 3008.2
Egress (power loss)	Under 15 lb (66.7 N) clears flexible strips from the frame
Power	120VAC · UL 864 listed releasing device · battery backup standard (batteries not included)

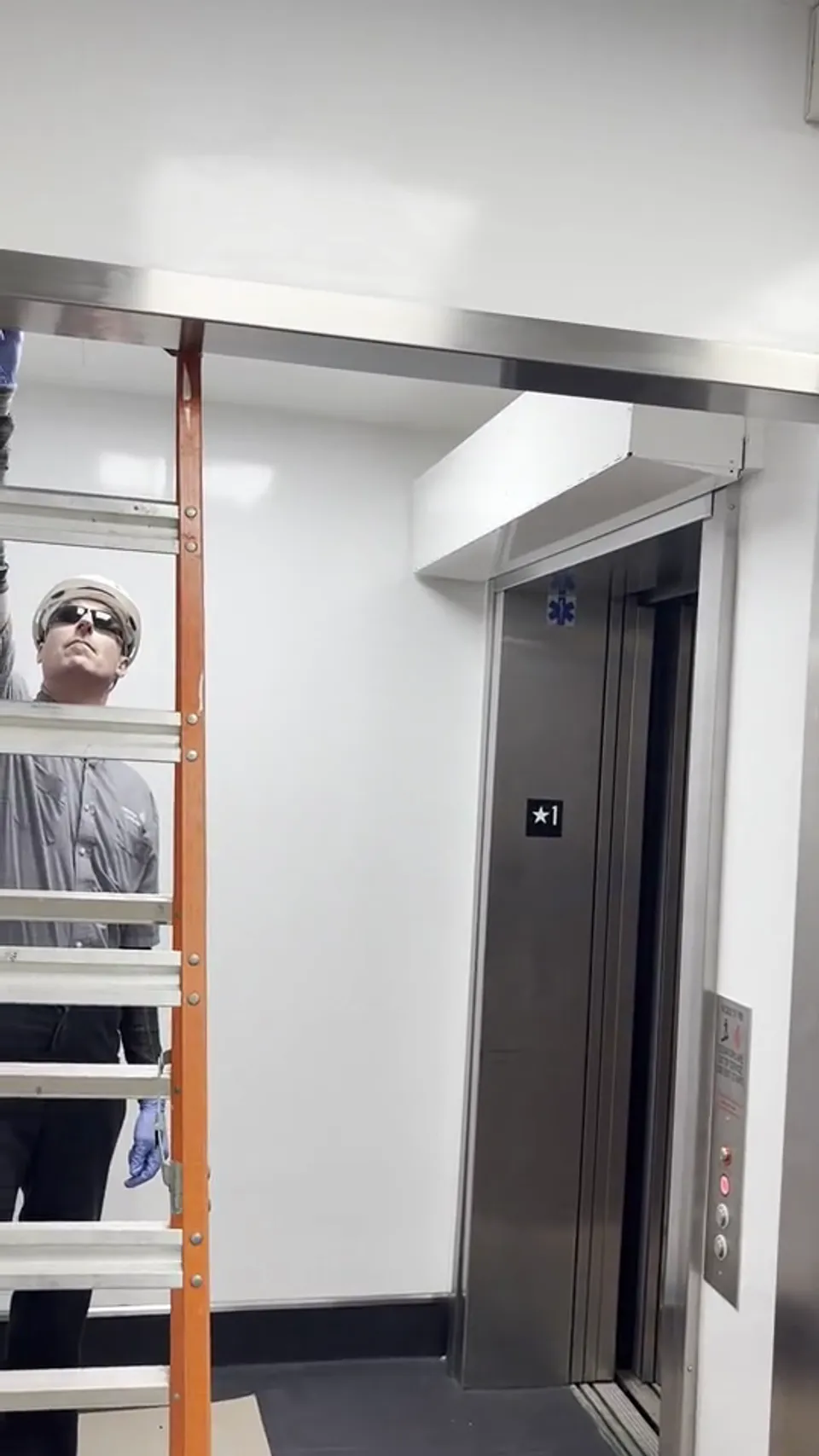

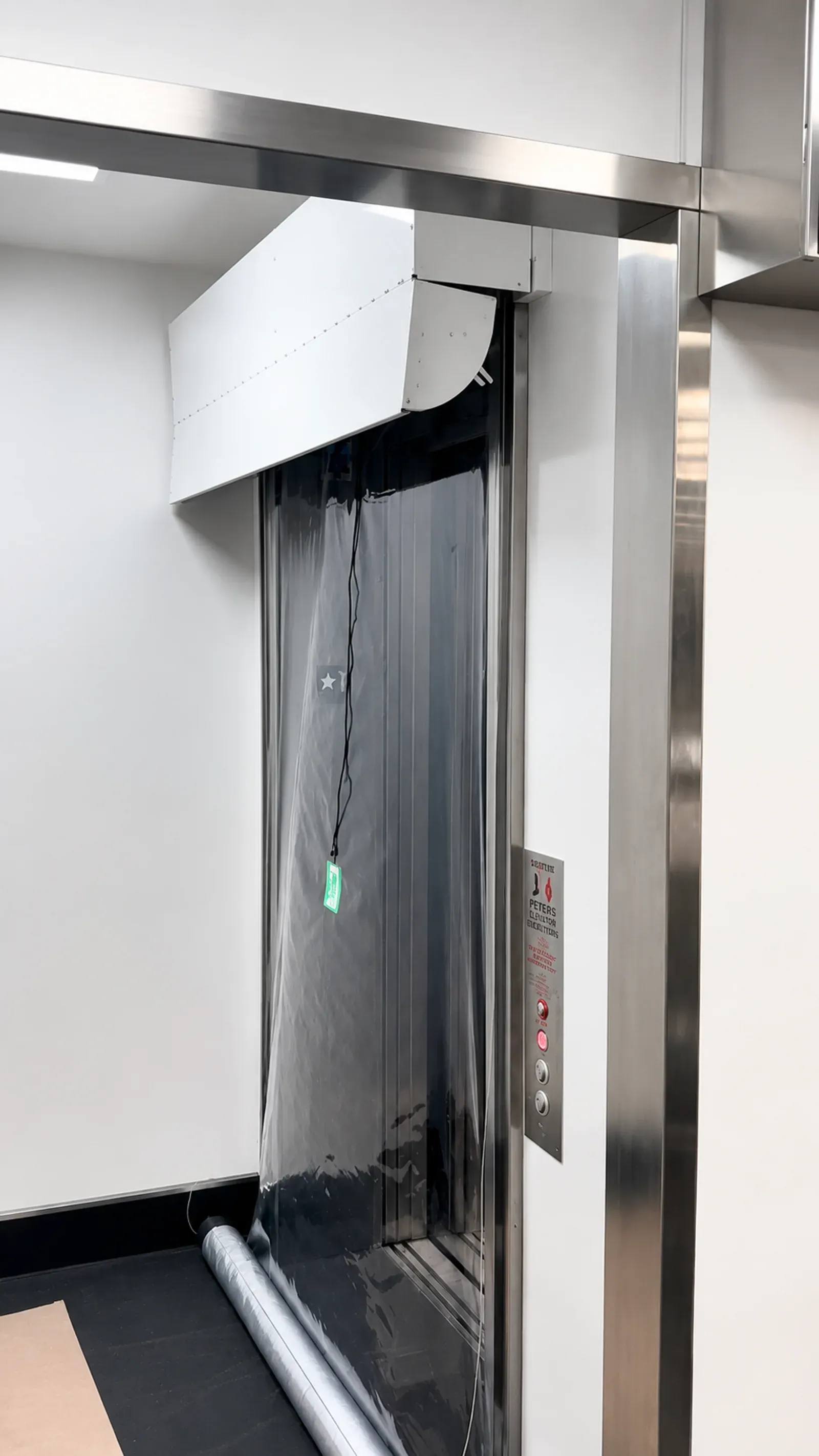

Headbox	Automatic mechanical closing · surface or recessed mount, ceiling edge support option · powder-coated white
