U.S. Smoke & Fire › Fire Protective Smoke Curtains › SD240GS 2Hr Smoke Curtain with Pass Through Slot Egress
U.S. Smoke & Fire – SD240GS 2 Hr Fire Protective Smoke Curtain with Pass Through Slot is a smoke and fire barrier system per IBC 1008. UL certified for up to a 2 hour wall. Utilized for corridor rating, cross corridor solutions where push to exit is required
Technical Information:
- UL certified for up to 2 hours.
- The curtain can have a maximum span up to 146 feet and drop height of 45 feet.
- Utilized for corridor rating, cross corridor solutions where push to exit is required.
- Push to exit is less than 15 pounds of push force.
- Threshold is 3/4 inch.
- The slope is 50%.
- The opening is more than six foot, eight inches from the top.
- Pass through slot
Product Downloads:
SD240GS 2 HR FIRE PROTECTIVE SMOKE CURTAIN WITH PASS THROUGH SLOT CSI SPEC (PDF)SD240GS 2 HR FIRE PROTECTIVE SMOKE CURTAIN WITH PASS THROUGH SLOT CSI SPEC (WORD)SD240GS 2 HR FIRE PROTECTIVE SMOKE CURTAIN WITH PASS THROUGH SLOT CAD BLOCKSSD240GS 2 HR FIRE PROTECTIVE SMOKE CURTAIN WITH PASS THROUGH SLOT CAL FIRE REPORT
SEE THE SMOKE CURTAIN IN ACTION:

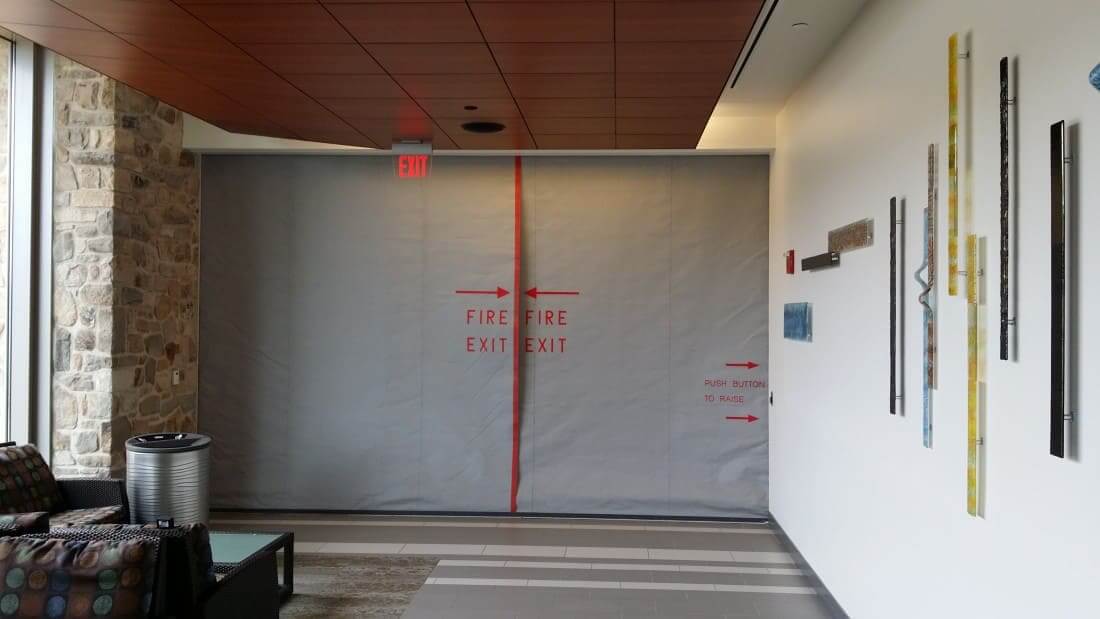

VIEW IMAGES OF THE SMOKE CURTAIN IN ACTION:
